LAUNCH X431 CRP429C Car Diagnostic Tools Auto OBD OBD2 ABS SRS Airbag AT 4 System Scanner DPF A/F 15 Reset Free Update pk CRP479

(2 customer reviews)

$428

  • Brand Name: LAUNCH
  • Origin: Mainland China
  • Hardware Version: 2023 version
  • Special Features: Wifi
  • Software Version: 2023 version
  • Item Type: Code Readers & Scan Tools
  • Certification: CE
  • Language: English,French,German,Italian,Japanese,Korea,Portuguese,Russian,Spanish
  • Software Update: Yes
  • Item name: LAUNCH CRP429C
  • 4 System Diagnostic: Engine , ABS , SRS Airbag, Transmission
  • 15 Reset Service: Reset OIL, EPB, TPMS, SAS, Gear, IMMO, BMS, EST, DPF, Injector, ABS Bleeding
  • Multi-Protocol: OBDII and OBDI , JOBD,KOBD ,EOBD
  • Full OBD2 Function: Read Codes, Delete Codes, Read Data Stream, ect
  • Feature: Touch Screen and Keypad input
  • Operation system: Android 7.0
  • Size: 5’inch Touch Screen
  • ROM: 16GB storage
  • Battery Test: Read Battery Real-time Voltage
  • Diagnostic Report: Email Share and Print
  • Diagnostic Feedback: One-Click Feedback
  • Diagnostic Record: Diagnose Report Print Share Via email
  • Update: Lifetime Free Update
  • Warrany: 1 year


LAUNCH X431 CRP429C Professtional Diagnostic Tools Engine ABS SRS AT 4 System Diagnosis with A/F DPF, TPMS 15 Reset , Auto VIN Scan , 10 Language Supports, Wifi Free Update Online

New Function added in October 2022

1. Extended Free Update period : from 1 year free to lifetime free update

2. Added 4 Reset Service, total get 15 Reset Service

a. EGR Adaption
learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.

b. A/F Reset

This function is applied to set or learn air/fuel rate parameters

c. Suspension Calibration
adjust the height of the body It needs to be performed in the following cases:
1. When replacing the body height sensor, or control module in the air suspension system.
2. When the vehicle height is incorrect

d. NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.

10 Language Support , Switch freely for free

English, French, Spanish, Russian, Japanese, German, Italian, Portuguese,Korean and Chinese

The device default language is English , you can switch the supported language freely by choose setting menu.

Free Update via Wifi

4 Major System Diagnosis For ABS ,SRS Airbag , Engine and Transmission

1. Check Engine System

The diagnostic tool can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.

2. Check ABS System

Read and clear DTCs data flow in the ABS system. Performs various tests to check the operating conditions of Anti-lock Braking System, and turn off the warning light.

3. Check SRS Airbag System

Safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.Read and clear fault code in SRS (Airbag) system and turn off warning light of airbag for making sure engine work properly and safely.

4. Check Transmission System

Read and clear codes and view live data in transmission systems, keeps the transmission systems output optimally adapted to the speed and load. Retrieve the error information from Automatic Transmission (AT) which is a type of motor vehicle transmission that can automatically change gear ratios as the vehicle moves, freeing the driver from having to shift gears manually.

15 Maintence Reset Service

1. A/F Reset

This function is applied to set or learn air/fuel rate parameters

2. EGR Adaption

learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.

3. Suspension Calibration

adjust the height of the body It needs to be performed in the following cases:
1. When replacing the body height sensor, or control module in the air suspension system.
2. When the vehicle height is incorrect

4. NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.

5. Oil Reset Service

This function enables you to reset the oil service for the engine oil life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events. It needs to be performed in the following cases:
1. If the service lamp is on, run car diagnostics first for troubleshooting. After that, reset the driving mileage or driving time, so as to turn off the service lamp and enable a new driving cycle.
2. If the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.

6. Electronic Parking Brake Reset

reset the brake pad after replacing the brake pad. It needs to be performed in the following cases:
1. The brake pad and brake pad wear sensor are replaced.
2. The brake pad indicator lamp is on.
3. The brake pad sensor circuit is short, which is recovered.
4. The servo motor is replaced.

7. Battery Maintenance System Reset

perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done. It needs to be performed in the following cases:
1. The main battery is replaced.
2. The battery monitoring sensor is replaced.

8. Diesel Particulate Filter (DPF) Regeneration

clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance. It needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MIL is on and maintenance is performed.
6. The DPF regeneration control module is replaced

9. Steering Angle Calibration

reset the steering angle, after replacing the steering angle position sensor, replacing steering mechanical parts ( such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body. To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering

10 Reset TPMS

makes sense in displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors.

11. IMMO Service

perform the anti-theft key matching function, so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car. It needs to be performed in the following cases: When the ignition switch key, ignition switch, combined instrument panel, ECU, BCM, or remote control battery is replaced.

12. ABS Bleeding

perform various bi-directional tests to check the operating conditions of Anti-lock Braking System (ABS). It needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced.

13. Electronic Throttle Position Reset

make initial settings to throttle actuators and returns the learned values stored on ECU to the default state. Doing so can accurately control the actions of regulating throttle (or idle engine) to adjust the amount of air intake.

14.Gear Learning

perform tooth learning for the car, to turn off the MIL. It needs to be performed in the following cases:
1. After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced.
2. The DTC ‘tooth not learned’ is present.

15. Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Otherproblems with the ignition system and mechanical components also may not show an rpm loss when aninjector is turned off
……

Note : These special function NOT for all car models, if you are confused, Please send your car brand, model and release year to seller to check it for you .

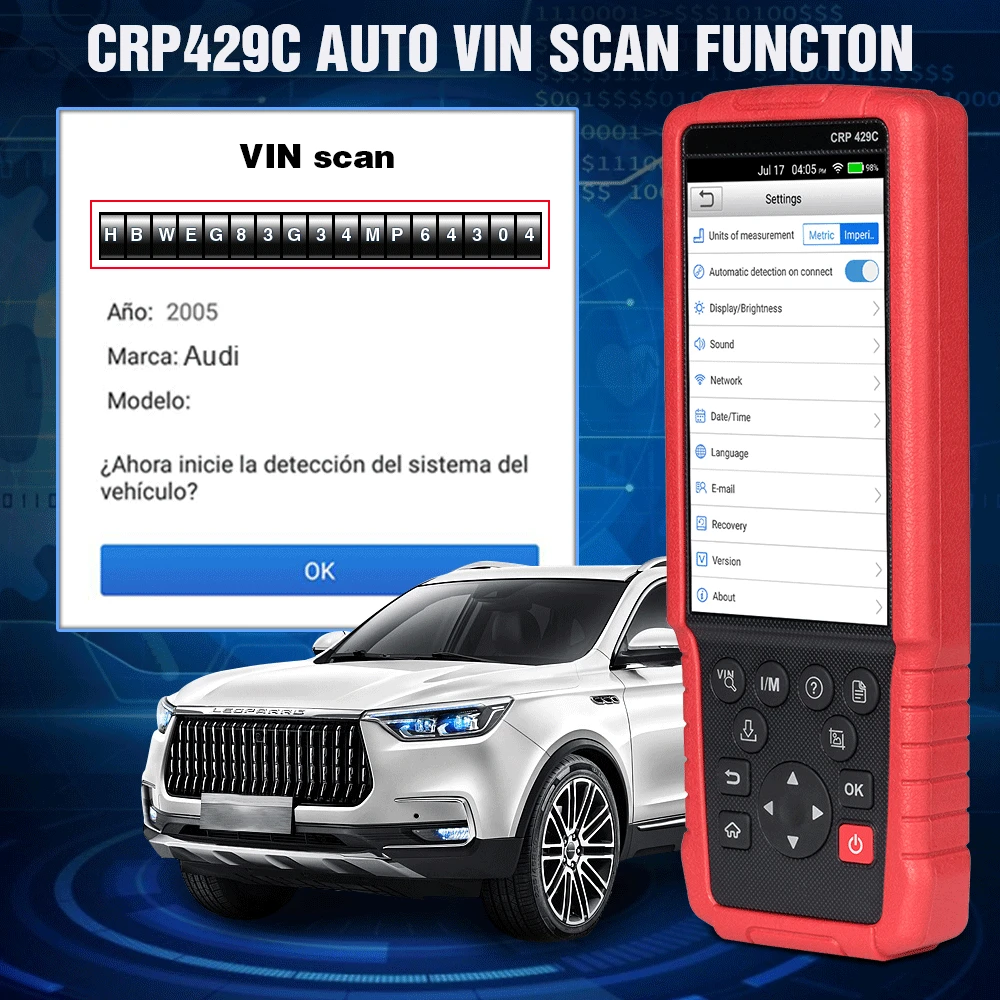

Support automatic identification of VIN for the matching of vehicle models

Live Data Stream Analyse in Graph

The launch scanner CRP429c shows you live sensors data and provides data graphing for intuitive diagnostics and monitoring your vehicle performance, help customers to better analyze the abnormal parameter.

Battery Test

Displays battery real-time voltage once properly connected to the vehicle

Full 10 Mode OBDII/EOBD/JOBD Car Diagnostics Functions

This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:

1. Reading Codes

Show the detailed description of the Diagnostic Trouble Code (DTCs)

2. Erasing Codes & Reset

Turns off Check Engine Light (MIL), clears codes and resets monitors.

3. Data Stream

Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4. I/M Readiness Status

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5. Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6. View Freeze Frame Data

Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7. O2 Sensor Test

Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8. On-Board Monitor Test

Retrieves and displays test results for emission-related powertrain components and systems.

9. Read Vehicle Information

Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10. Component Test

Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

Diagnostic Reprot Share and Print

Launch CRP429C obd2 scanner support auto generate and store vehicle diagnostic report which can let your mechanic know how to do vehicle inspection and maintenance. And the diagnostic report can be shared to email then print.
The diagnostic report can help you save time to analyse the problem, it is very great for repair shop , mechanics can print out the vehicle report for customer.

DTC Library

Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.

57+ Car Brands,10000+ Vehicles Suported

for AUDI, for AUTOSEARCH, for BENZ, for BMW, for Mini, for CHRYSLER, for Dodge, for Jeep, for CITROEN, for DAEWOO, for DEMO, for EOBD2(EOBD2), for FIAT, for Abarth, for Alfa Romeo, for Lancia, for GM, for Buick, for Cadillac, for Chevrolet, for HONDA,for ACURA
, for HYUNDAI, for JAGUAR,for JPISUZU, for Tlisuzu, for KIA, for LANDROVER,for MAZDA, for MITSUBISHI, for NISSAN,for Infiniti, for Nissangtr, for OPEL, for Gmsa, for Vauxhall, for PEUGEOT, for , PORSCHE, for RENAULT, for DACIA,for SAMSUNG, for SAAB, for SEAT,for SKODA,for SMART, for SPRINTER, for SUBARU, for SUZUKI, for TOYOTA,for Lexus, for USAFORD, for Euroford, for Lincoln, for AUSTFORD, for VOLVO, for VW, for BUGATTI

Packing List
